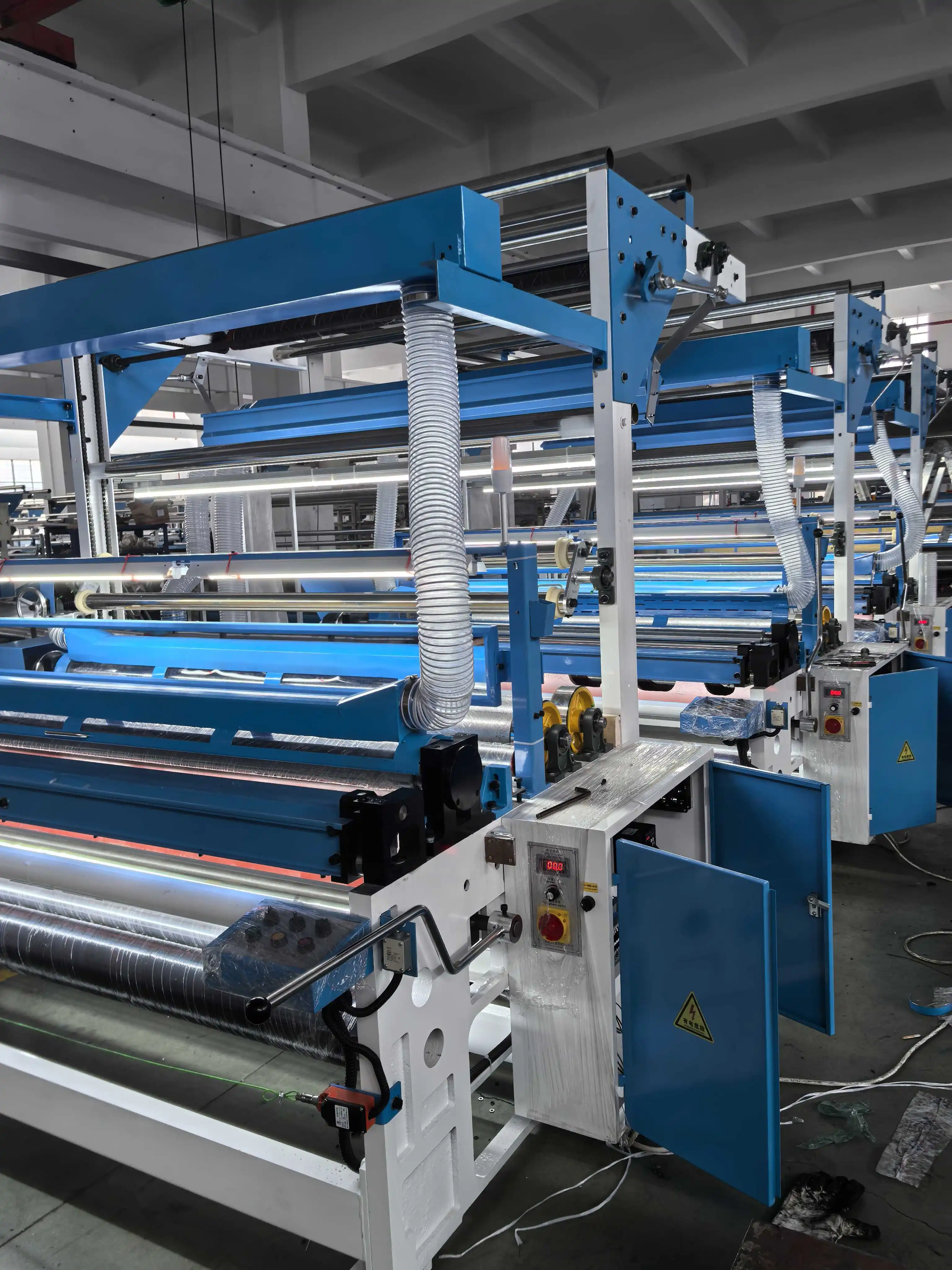

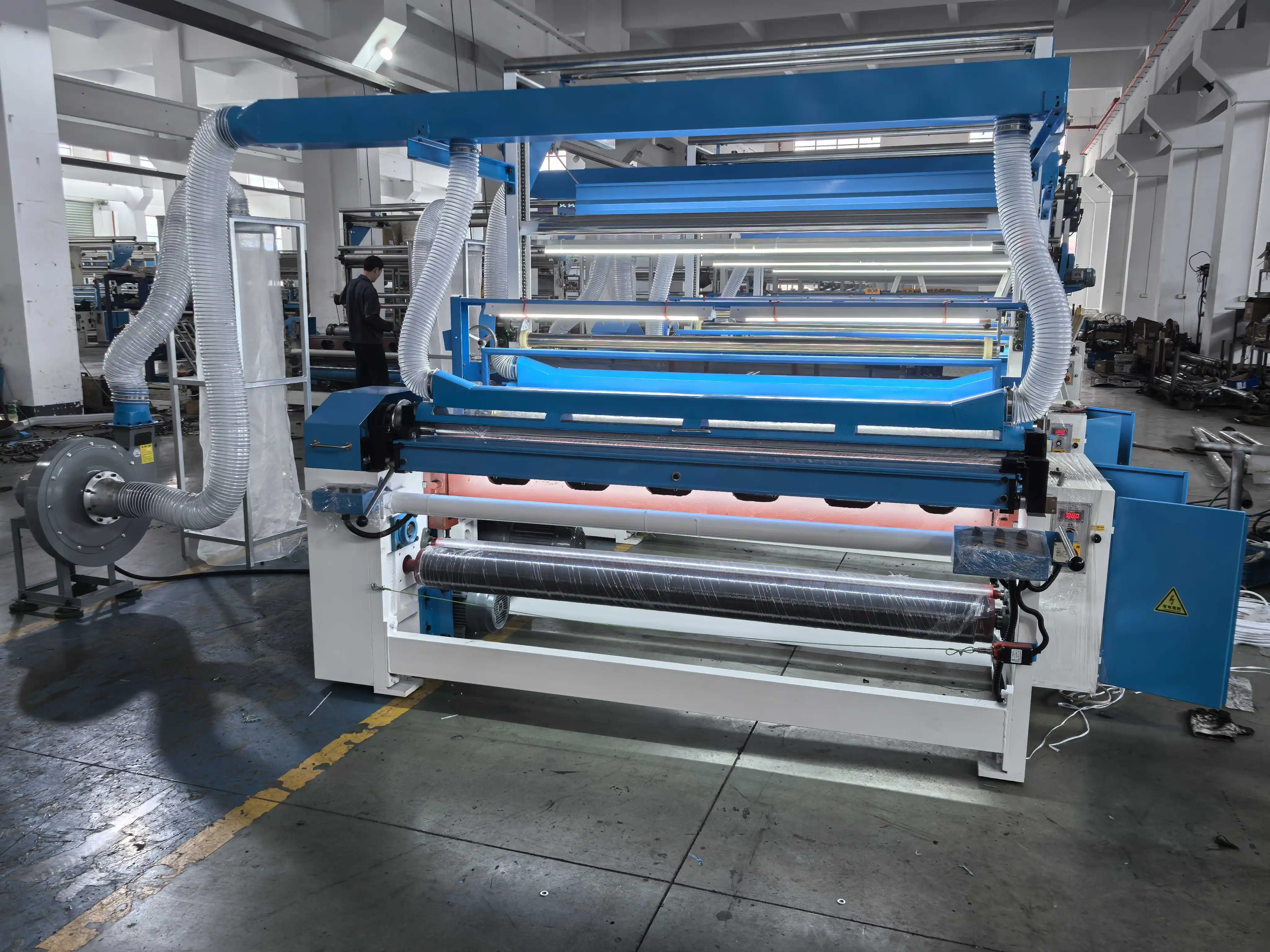

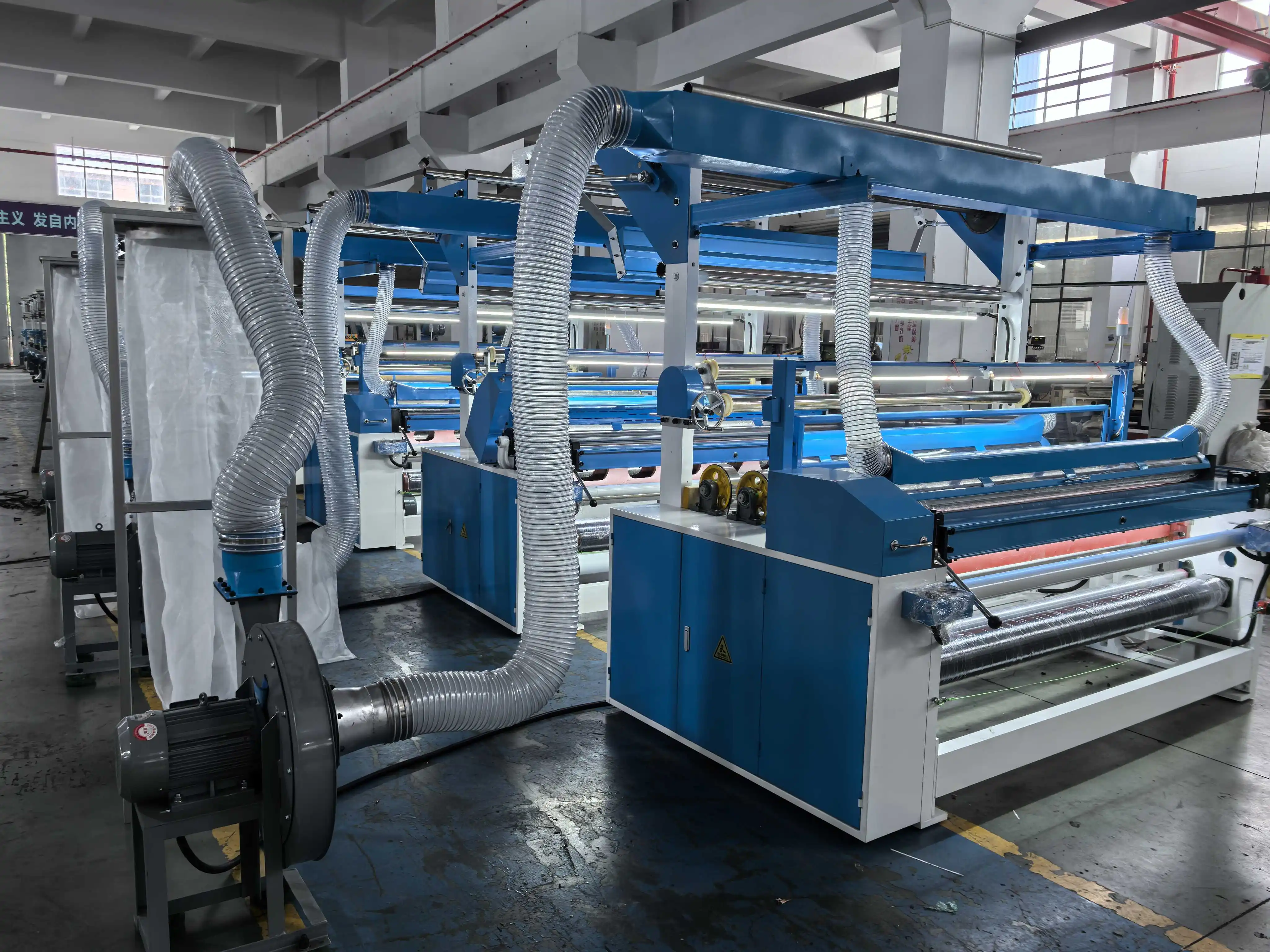

Product Description
Product Use :

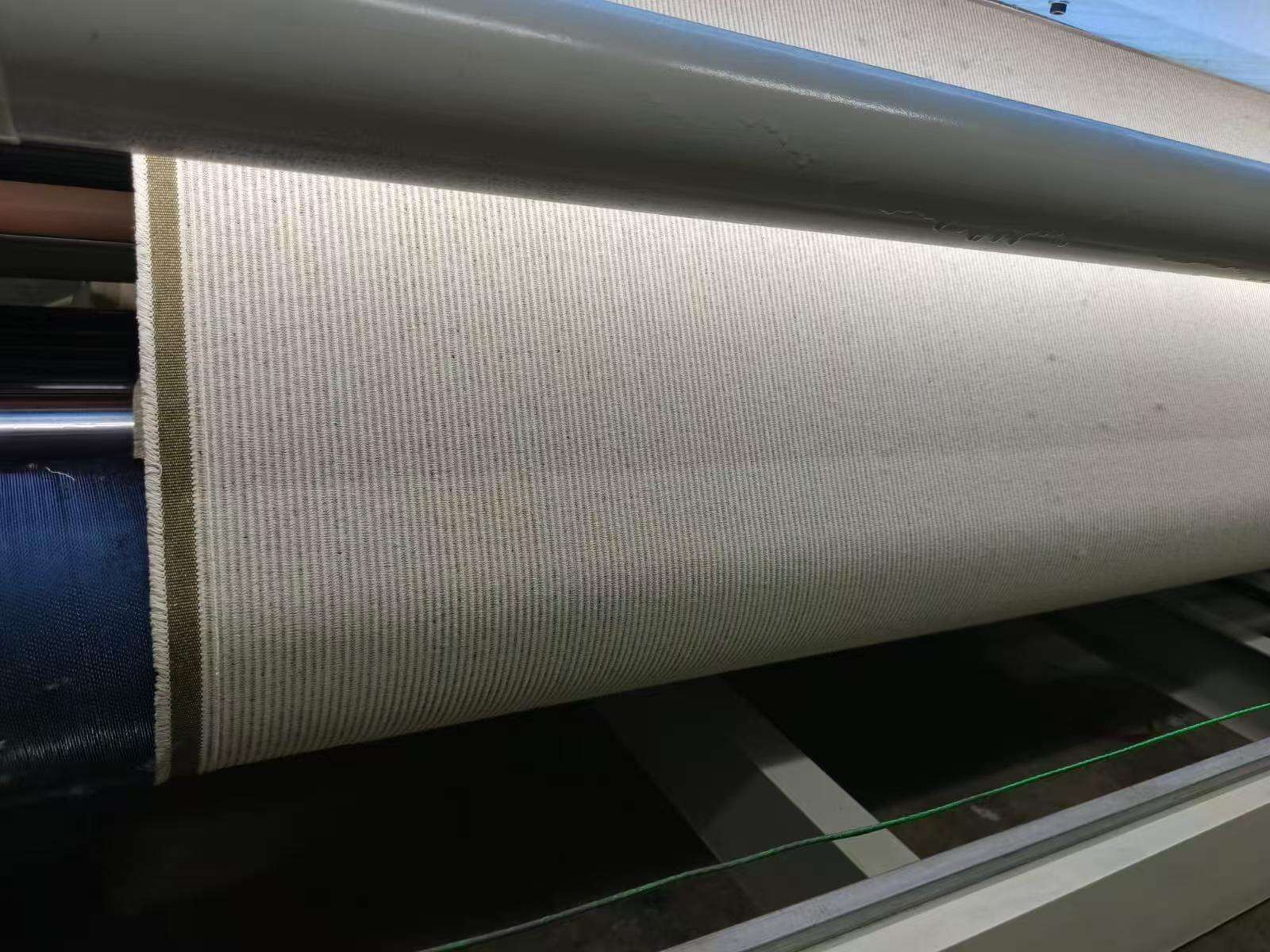

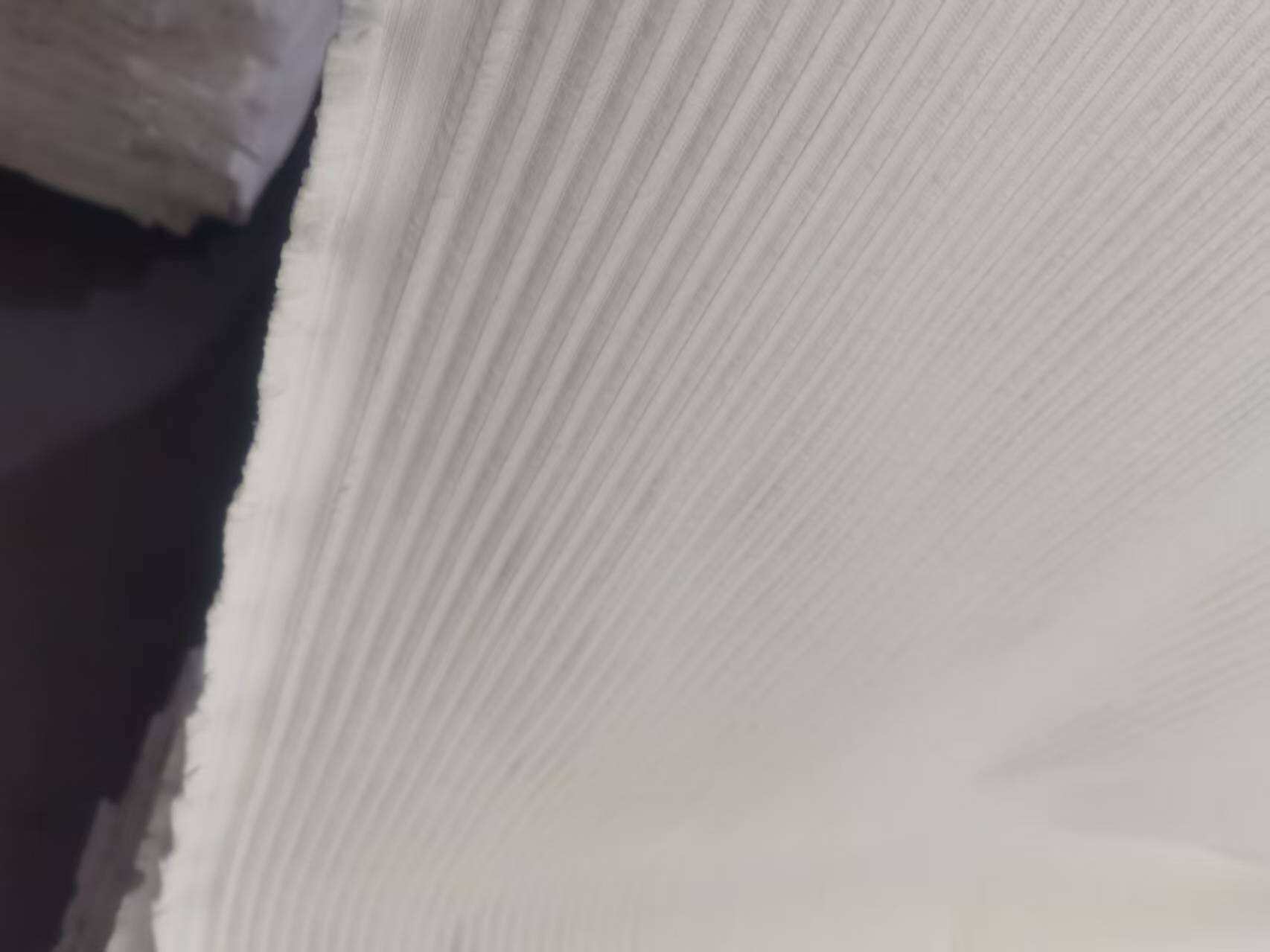

According to the characteristics of corduroy weaving, the coarse, medium, thin strips and jacquard
corduroy grey cloth floating weft are cut off for subsequent processing process production.
Key features:
1. The stability of the equipment is more reliable. It is controlled by imported inverter, and mechanical
braking and electromagnetic braking are integrated .The frame wall panel and key components are
castings, which ensures the assembly accuracy of the whole machine and eliminates the deformation
difference of the gravitational force of the steel structure in use.
2. The production technology has been improved. Due to the stable production of the equipment, the
According to the characteristics of corduroy weaving, the coarse, medium, thin strips and jacquard
corduroy grey cloth floating weft are cut off for subsequent processing process production.
Key features:
1. The stability of the equipment is more reliable. It is controlled by imported inverter, and mechanical
braking and electromagnetic braking are integrated .The frame wall panel and key components are
castings, which ensures the assembly accuracy of the whole machine and eliminates the deformation
difference of the gravitational force of the steel structure in use.
2. The production technology has been improved. Due to the stable production of the equipment, the
processing varieties have been further broadened, and it is suitable for the processing of 1.5~35
strips/25.4mm corduroy. There are few stops and failures, which ensures the quality of processed
products.
3. The production efficiency has been improved. The stepless speed regulation is 2 ~ 15 m / min, which
is 20 ~ 30% higher than that of similar equipment.
4. Reduce production energy consumption. The energy consumption of a single unit is 7 KW, which is 1
~ 2 KW lower than that of similar equipment.
Main technical parameters:
Nominal width: 2000 mm-3600mm
Effective width: 1900 mm-3500mm
Cloth speed: 2 ~ 15 m/min
Spindle speed: ≥1440 r/min
Pin Push Frequency: 160 ~ 880 N/min
Spindle diameter: 200 - φ83 mm, 3600-φ114.3mm
Power consumption: 7-9 KW
Dimensions: (L×W×H) can be customized
strips/25.4mm corduroy. There are few stops and failures, which ensures the quality of processed
products.
3. The production efficiency has been improved. The stepless speed regulation is 2 ~ 15 m / min, which
is 20 ~ 30% higher than that of similar equipment.
4. Reduce production energy consumption. The energy consumption of a single unit is 7 KW, which is 1
~ 2 KW lower than that of similar equipment.
Main technical parameters:
Nominal width: 2000 mm-3600mm
Effective width: 1900 mm-3500mm
Cloth speed: 2 ~ 15 m/min
Spindle speed: ≥1440 r/min
Pin Push Frequency: 160 ~ 880 N/min
Spindle diameter: 200 - φ83 mm, 3600-φ114.3mm
Power consumption: 7-9 KW
Dimensions: (L×W×H) can be customized
Specification
item |
value |
voltage |
380V |
automatic grade |
Semi-automatic |
Power(W) |
9000 |
Weight (KG) |
2000 |
video outgoing-inspection |
Provided |
machinery test report |
Not Available |
core components |
motor, Bearing |
place of origin |
China |
Jiangsu |
|
brand name |
schneiter |
dimension(l*w*h) |
2600*2000-3600*2600 |
Warranty |
1 Year |
